Breezaire WKSL 4000 Wine Cellar Cooling Unit

Safeguard Your Favorite Wines with the WKSL 4000 Wine Cellar Cooling Unit by BREEZAIRE

If our standard, self-contained units don't fit your needs, the WKSL 4000's split design offers the flexibility to handle unique installations or specific challenges.

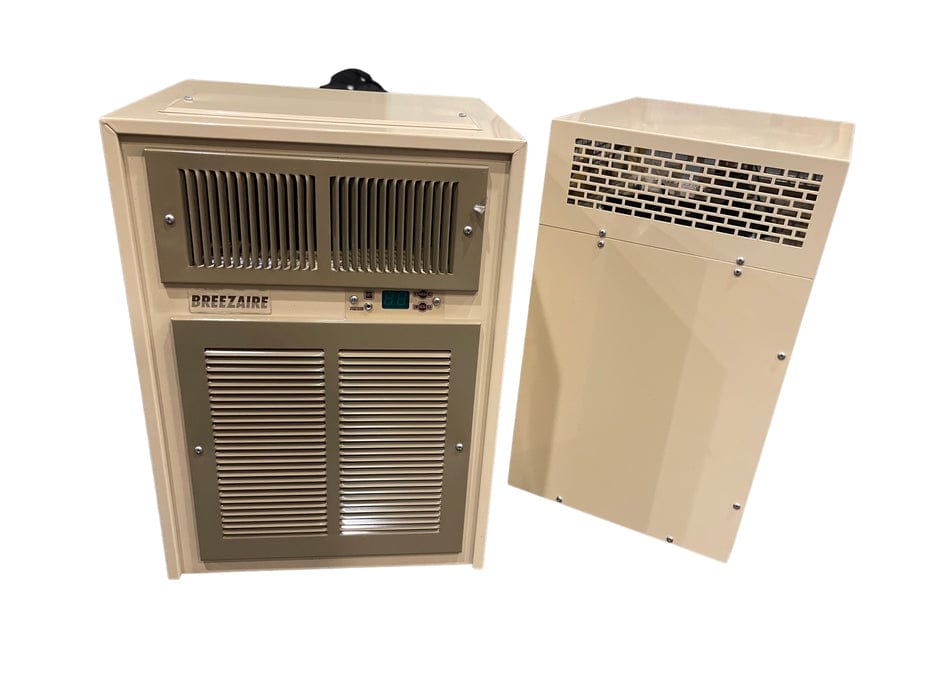

The WKSL 4000 is a specialized cooling system that lets you install the cooling module inside the area to be cooled, and the exhaust module up to 50 feet away. Once set up in a well-constructed space, it maintains a stable temperature range of 48 to 63 degrees Fahrenheit and a humidity level of 50 to 75%.

Installation is straightforward for a qualified air conditioning or refrigeration technician. The two modules are connected by copper tubes and low-voltage wiring, and are powered by a 110-volt AC source. The system needs to be filled with refrigerant during installation and utilizes the Sentry III+ digital control system for precise climate management.

Note: BREEZAIRE's systems are specially engineered for the precise climate control required by sensitive items like wine. They're not suited for general refrigeration use. For help in choosing the right system for your specific needs, consult your authorized dealer.

Features

• WKSL includes Fan/Coil & Condenser

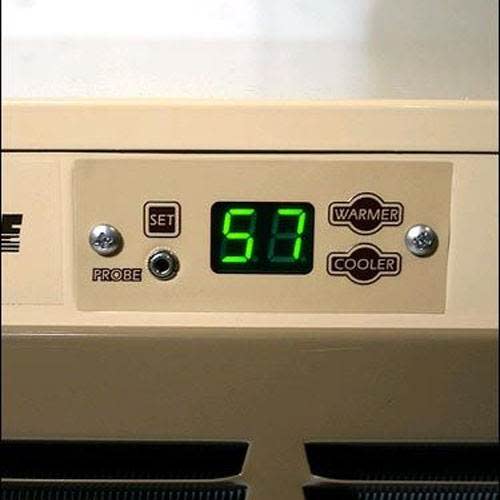

WKSL Series Wine Cellar Cooling Unit (Sentry III+) Control System Features

• Large, easy to read, green LED display
• Accurate, easy to adjust, readable set points with continuous reading of enclosure temperature or displaying of set point when changing enclosure temperatures.
• Power outage protection, which delays units start up after power outages.
• Blocked airflow protection, which shuts down the unit and protects your wine in case of high temperatures caused by condenser blockage.
• Controls temperature by enclosure air sensors or optional bottle probe.
• Units are shipped from the factory fully charged and ready for use when mounted in a wall and connected to 115 AC volt source

Specifications

Fan/Coil Specifications

• Enclosure Volume (max): 1000 cu.ft.
• Electrical: 1.5 Amp

Condenser Specifications

• Enclosure Volume (max): 1000 cu.ft.
• Electrical: 7.5 Amp

Dimensions (in): 14.25W x 19.75H x 12.375D
Fan/Coil Weight: 45 lb
Condenser Weight: 55 lb.

Breezaire WKSL Wine Cellar Cooling Units Installation Instructions
