Breezaire WKL 4000 Wine Cellar Cooling Unit

Keep Your Medium to Large Wine Cellar Perfect with BREEZAIRE's WKL 4000 Cooling Unit

The BREEZAIRE WKL 4000 is designed for medium to large home wine cellars, accommodating spaces up to 1000 cubic feet. It consistently keeps your wine at the optimal temperature. The unit comes with the advanced Sentry III+ control system, featuring a user-friendly LED display and digital temperature settings, as well as protection against power outages and blocked airflow.

This unit’s performance speaks for itself. It offers more features than many competing high-end models, thanks to its Sentry III control system.

For condensation removal, each WKL unit includes a drain tube at its cold-side base. Additionally, Breezaire can add a Rear Drain Fitting (RDF) to the back of the unit. To manage condensate, connect a ½-inch I.D. vinyl hose to this fitting and lead it to an approved drain. Make sure to include an air break within 2 to 10 inches from the unit's connection. If the hose needs to go uphill or run a significant distance horizontally, you'll need a condensate pump. This fitting is located on the unit's lower left-hand rear side.

Note: BREEZAIRE cooling units are specifically designed for maintaining carefully controlled environments for temperature-sensitive items like wine. They are not suitable for general refrigeration. For personalized guidance, consult your authorized dealer.

Features

• All WKL model have a drain tube located in the base of the unit on the cold side
• Come with the electric cord out the front
• The WKL 4000 models are shipped from the factory with the unit configured with the cold air routed out the front

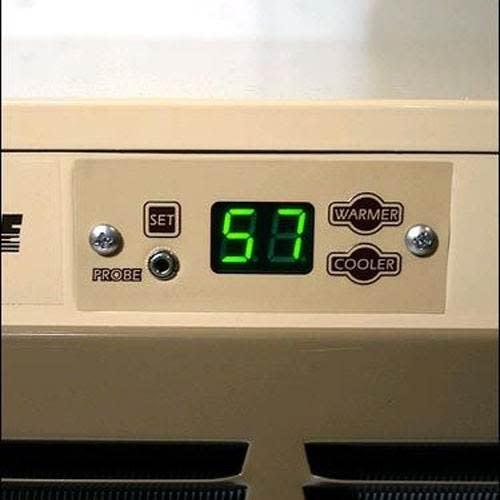

WKL Series Wine Cellar Cooling Unit Sentry III+ Control System Features

• Large, easy to read, cool green display.
• Accurate, easy to adjust temperature set points with continuous display of cabinet temperature.
• Power outage protection
• Blocked airflow protection, which shuts down unit and protects wine in case of high temperatures caused by condenser blockage or fan failure.
• Controls temperature by enclosure (cellar) air sensors or optional bottle probe.
• Units are shipped from the factory fully charged and ready for use when mounted in a wall and connected to 115 AC volt source.

Specifications

• Model: WKL 4000
• Volume (max): 1000 cu.ft.
• Electrical: 7 Amps
• dBA: 61

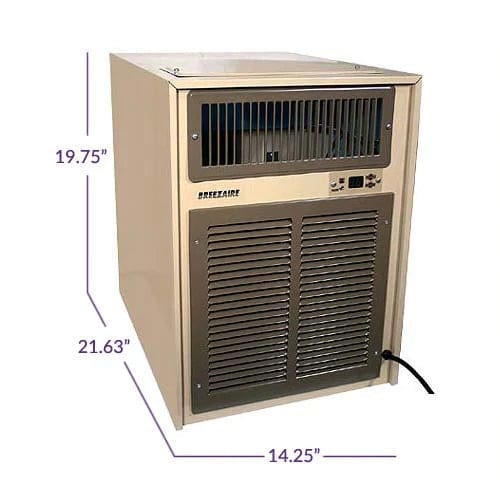

Dimensions (in): 14.25W x 19.75H x 21.63D
Weight: 81 lb.
